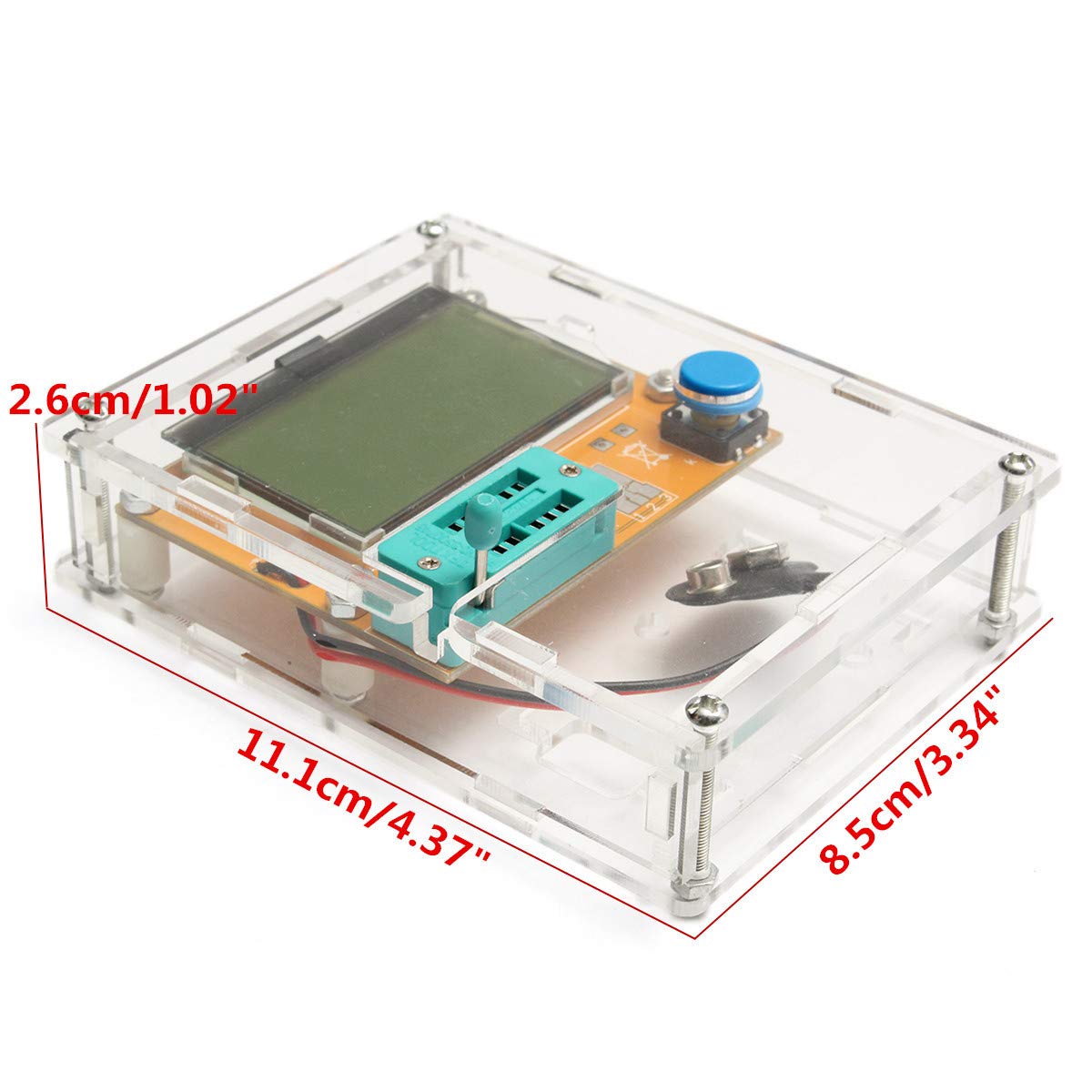

Treedix LCR-T4 Mega328 Graphical Transistor Tester Kit SCR ESR Transistor Diode Resistance and Capacitance Meters with Battery Buckle and Acrylic Case

Specification： Working power: DV 9V Operating current: 25mA Capacitor Range: 25pF-100000uF Standby current: 0.02uA Resistor Range: 0.1Ω -50MΩ Inductance Range: 0.01mH - 20H PCB Size: 63 x 71 mm LCD Display: 128 x 64 Normal Testing Speed: 2 seconds Shutdown Current: 20nA Features： 1. Operates with ATmega328 microcontrollers. 2. One key operation with automatic power shutdown. 3. Shutdown current is only about 20mA. 4. Automatic detection of NPN and PNP bipolar transistors, N- and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs. 5. Automatic detection of pin layout of the detected part. 6. Measuring of current amplification factor and Base-Emitter threshold voltage of bipolar transistors. 7. Darlington transistors can be identified by the threshold voltage and high current amplification factor. 8. Detection of the protection diode of bipolar transistors and MOSFETs. 9. Measuring of the Gate threshold voltage and Gate capacity value of MOSFETs. Package included: 1 x LCR-T4 Transistor Tester with Battery Buckle 1 x Acrylic Case for LCR-T4 Transistor Tester Note: The power supply need a 9V layer-built battery.

• This meter is an intelligent semiconductor device analyzer, it can measure most of the diodes, bipolar transistors, Junction/MOS FETs and low power thyristors.
• Automatically identifies the type of devices and pin outs, measures the current gain HFE, gate threshold and FET junction capacitance, a typical application is to pair two transistors or identifies an unknown SMD device.
• The pin of a component can be automatically tested and the data will be shown on the LCD display whose resolution is 128 x 64 with a backlight.
• Power-on voltage detection function. The shutdown current is only 20nA, which supports battery operation.
• Automatic shutdown function can avoid unnecessary waste, save battery energy.
