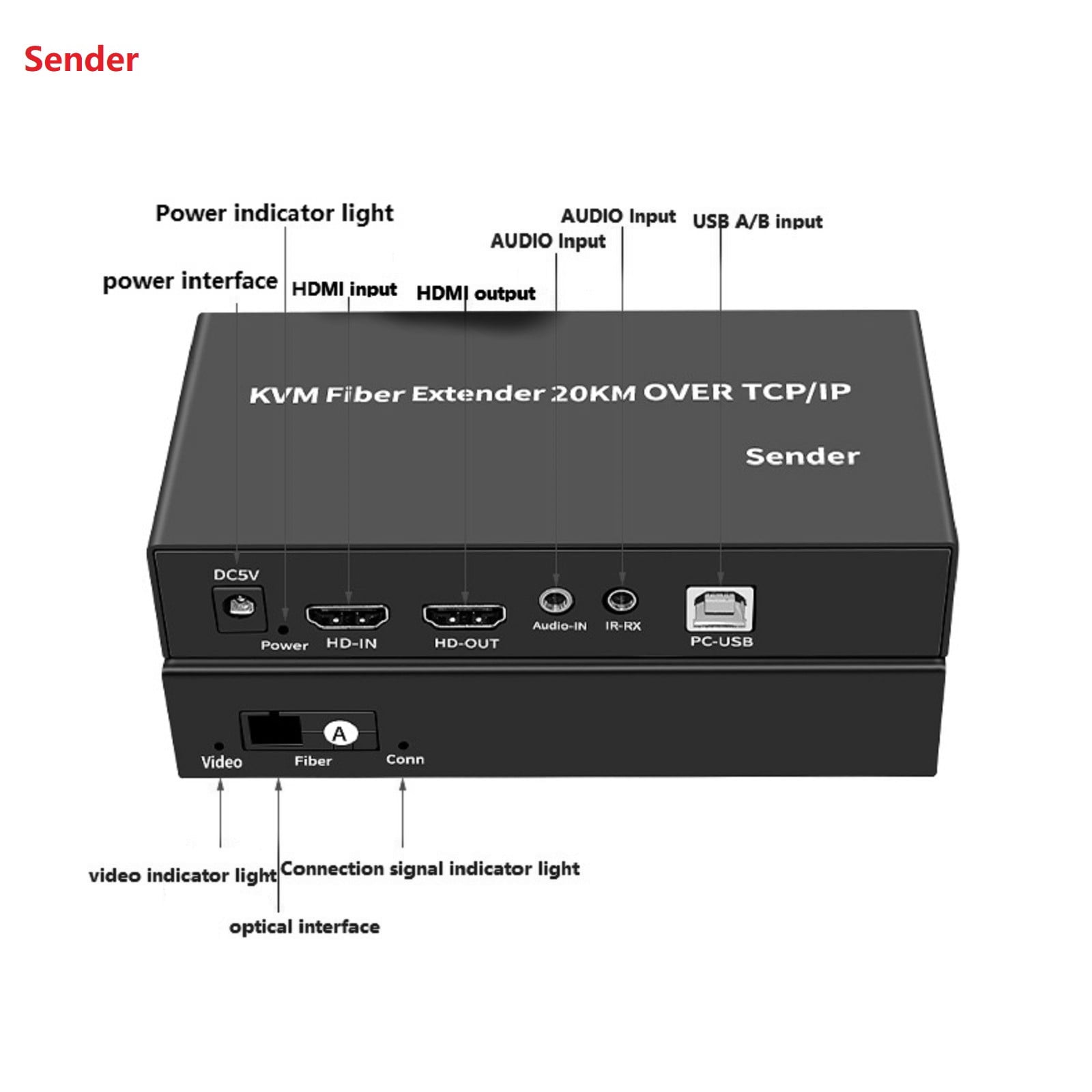

TAPDRA Part 20Km HDMI KVM Fiber Extender, Extend Mouse Keyboard Splitter Support Mouse Keyboard 1080P@60Hz

HDMI KVM Fiber Extender over SC Fiber Optical Cable to 20Km HDMI KVM Extender to Fiber Transceiver Support USB Mouse Keyboard<br><br><b>Specification:</b><br>Standards: For HD V1.3; for HDCP 1.2<br>Maximum pixel clock: 165MHz<br>Maximum data rate: 6.75Gbps<br>Resolution: 1920X1080P@60Hz<br>Connector: HD-A<br>Impedance: 100Ω<br>PC: Type B USB interface; connect to pc;<br>K/M: connect USB keyboard and mouse;<br>Interface: 3.5mm seat<br>IR frequency: 20-60kHz<br>Fiber: Interface SC<br>Fiber Model: Single mode<br>wavelength: Single mode 1310nm;1550nm<br>bandwidth: 6.25Gbps<br>Transmission distance: MAX up to 20KM<br><br><b>Features:</b><br>Transmits HD video and audio signals up to 20KM over a single Fiber<br>Support video resolution up to 1920*1080P@60Hz<br>Support IR signal transmission(20KHz~60KHz)<br>Support keyboard and mouse<br>Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized<br>Compliance with HD V1.3 and For HDCP 1.2 standard<br>High compatibility, can auto-match source and display device<br>Built-in automatic adjustment system, make the image smooth, clear and stable<br>Built-in ESD protection system<br>Simple to install, plug and play<br><br><b>Package:</b><br>1 x HDMI transmitter<br>1 x HDMI receiver<br>1 x USB A/B cable<br>2x IR cable<br>2 x DC 5V selectable Power adapter<br>1 x User manual<br>

• 1. Extend your USB Mouse and Keyboard. Extender over SC Fiber Optical Cable to 20Km.
• 2. Plug and play, no software required. Multi-receive cascading transmission.
• 3. Low power consumption, low temperature and high safety.
