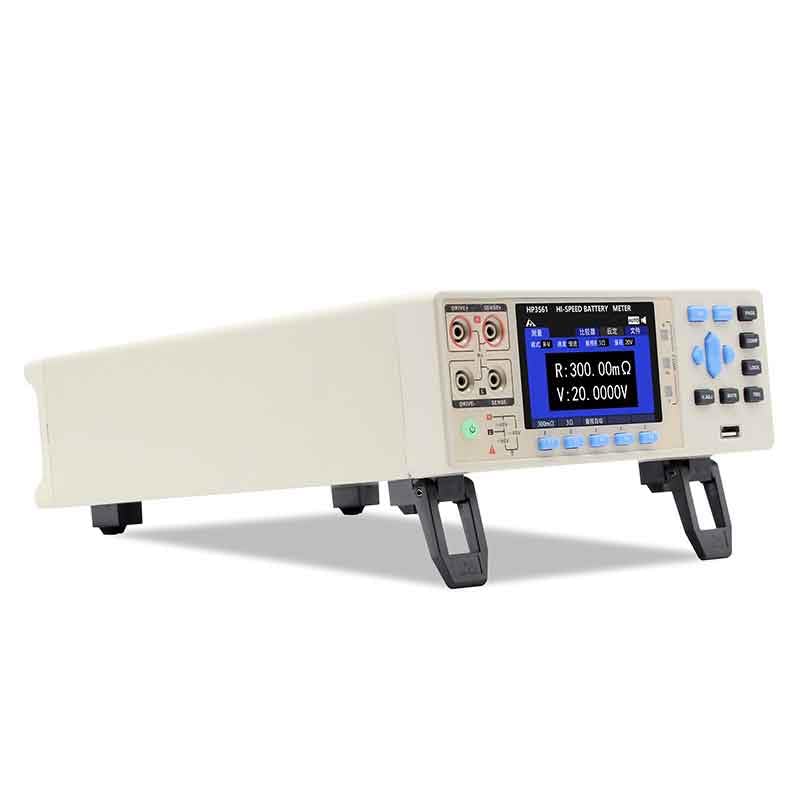

HP3561A Battery Internal Resistance Tester 0.001mΩ-3.1000KΩ,Test Voltage Display Range 0.1mV~60V with 3.5 inch TFT Color LCD

The HP3561A high precision is designed for new measurement requirements in the battery industry. Due to its high-performance microprocessor and four-wire measurement method design, it is suitable for low resistance batteries, high-capacity lithium battery packs and fast product sorting on the production line. The internal resistance and voltage are measured at the same time, which is fast and stable. With the technical advantages of Hope Instrument Technology in battery internal resistance testing for many years, the HP3561A is capable of providing test resistance range 30mΩ~3KΩ (6 ranges) and resistance display range 0.001mΩ～3.1000kΩ and voltage range 6V-60V(2 ranges), the test voltage display range 0.0001V-60.000V. Equipped with standard features RS232 interface and HANDLER interface, HP3561A offers the automatic battery measurement function.

• HP3561A series battery tester is designed to test battery AC internal resistance AC-IR and DC voltage DCV (OCV). Using four-wire test method, high-precision, low-temperature drift, and high-integration chip control loop design make it perform better, more accurate, and stable in low resistance level measurement.

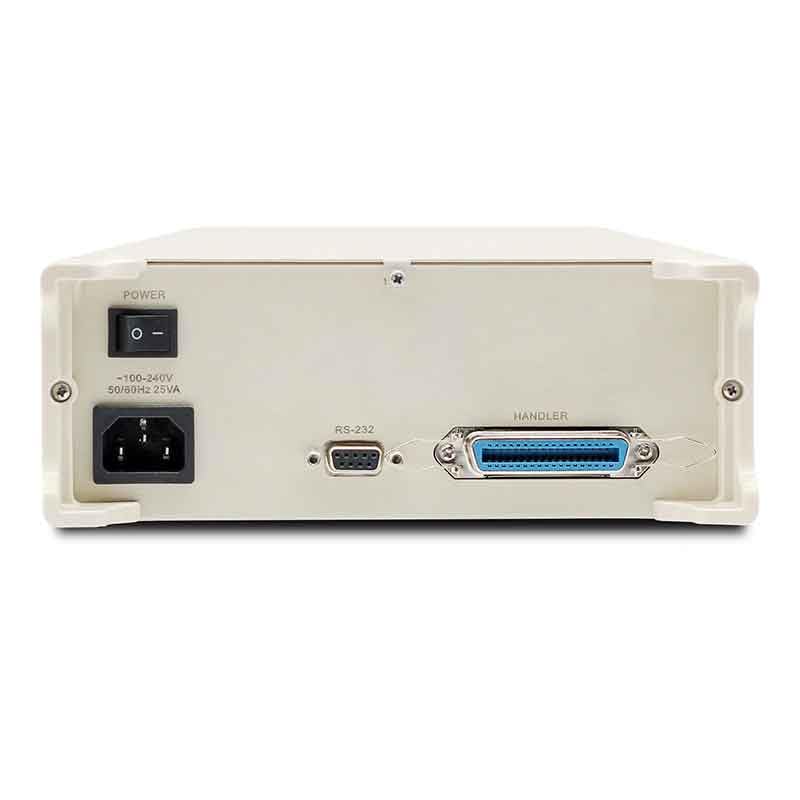

• Standard RS232/RS485 interface, optional LAN port, support both SCPI and Modbus protocols. The tester is compatible with both SCPI and Modbus protocols when using RS232 and RS485, and when using LAN, it supports SCPI protocol; It is also equipped with a Handler (I/O) interface, making it easy to interface with automation devices.
• HP3561A can be used for product development & testing, and automated production lines. Test all kinds of dry batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, button batteries, cylindrical batteries, pouch batteries, power battery packs, energy storage, batteries, etc.; Meanwhile, the ESR AC impedance of supercapacitor batteries can also be tested.
• APPLICATION:High precision lithium battery internal resistance, voltage detection;Support automatic test equipment to complete automatic detection of battery internal resistance and voltage;Support automatic test equipment to complete automatic detection of battery internal resistance and voltage;Super capacitor ESR test.●Sampling Rate:Slow: 3 times/sec, Medium speed: 10 times/sec, Fast: 30times/sec, Ultra-fast: 66 times/sec
• Power Supply:Voltage:100V-240V AC Frequency:47Hz-63Hz;●Power Pmax <15VA;●Interface:RS232 / RS485 / LAN /Handler（PLC interface）/ USB（host）;●Trigger Mode:internal trigger, manual trigger, external trigger, Auto trigger, BUS;●Display 3.5 inch TFT color LCD；●Source：1kHz±0.2Hz AC, test current amplitude < 100 mA；●Parameters：AC resistance AC-IR, DC voltage DC-OCV
