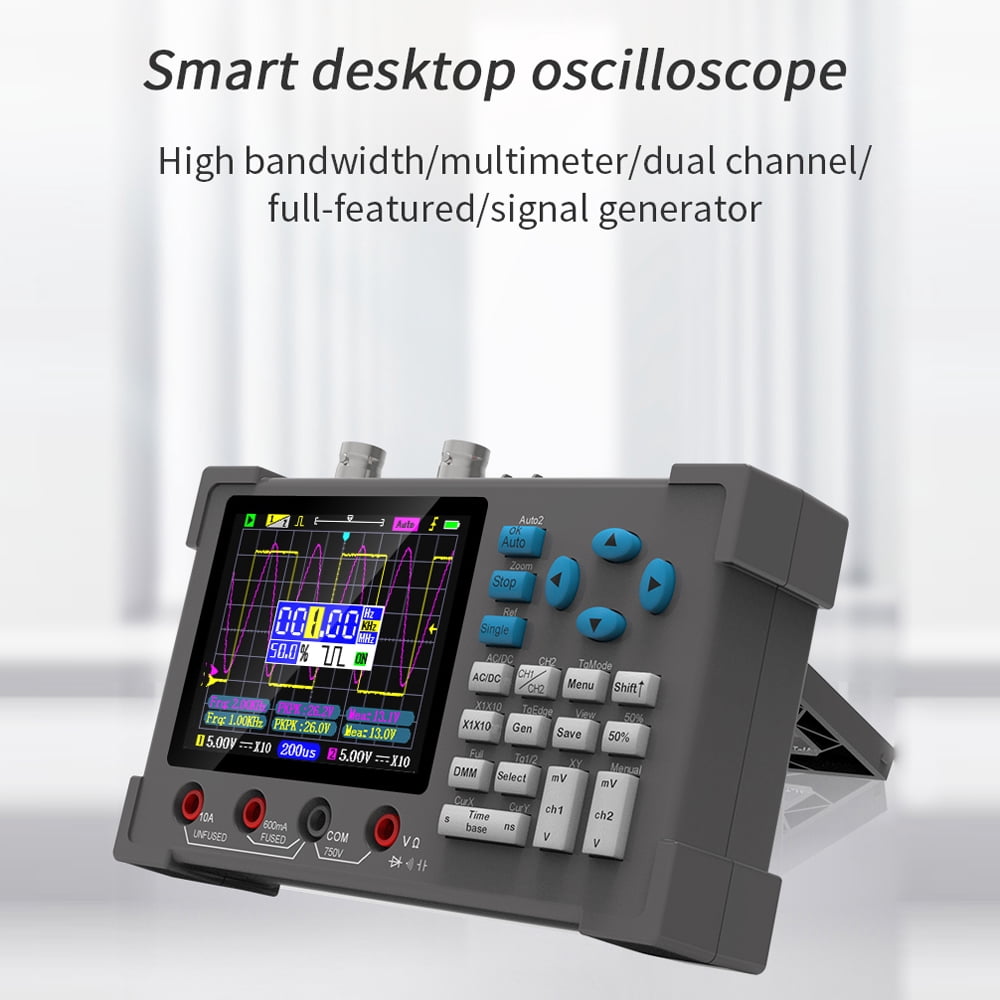

3in1 Oscilloscope Multimeter Signal Generator with IPS Display

3in1 design, this product ingeniously integrates digital oscilloscope, multimeter, and signal source functions in one device. Equipped with a 3.2-inch IPS display. With 120MHz bandwidth and 250MSa/s sampling rate. 3 trigger modes were designed, automatic, single, and normal. Multifunctional design, supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on.&nbsp;<br> <br> <strong>Features:<br> 3In1 Design with IPS Display:</strong> This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple.&nbsp;<br> <strong>Signal Generator: </strong>Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. voltage amplitude is 2.5V, frequency is adjustable from 0-2Mhz, and squarewave duty cycle is adjustable from 1% to 99%.<br> <strong>High-precise Multimeter:</strong> Built-in true RMS multimeter, that supports quick software calibration. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, oscilloscope and multimeter functions can be used simultaneously (small window in upper right corner).<br> <strong>Digital Oscilloscope Function:</strong> Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal). Supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view.<br> <strong>Sensitivity and Time Base:</strong> oscilloscope will automatically detect signal and adjusts ranges. Support manual adjustment of waveform vertically and horizontally. vertical sensitivity indicates voltage in vertical direction, and it is adjusted by mV and V buttons to adapt to different voltages. time base represents time in horizontal direction. It is adjusted by S and NS buttons to accommodate different frequencies. &nbsp;In stop mode, user can move waveform left and right.<br> <strong>Two Automatic Modes Adjustment: </strong>Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed.&nbsp;<br> <strong>High Bandwidth &amp; Sampling Rate:</strong> real-time sampling rate is 250MSa/s, dual-channel mode bandwidth is halved to 60Mhz.&nbsp;<br> <strong>Dual Channel: </strong>With dual-channel mode, which can measure and display two signal waveforms at same time for waveform comparison and analysis.<br> <strong> Mode for Cursor Measurement: </strong> mode is an imaging formed by combining waveforms of two channels and is commonly used to display phase difference or frequency relationship between two signals. Supports X cursor and Y cursor measurement. horizontal cursor can be used, for example, to measure interval time between two pulses. vertical cursor can be used to measure voltage and voltage difference at any two locations.<br> <strong>FFT Spectrum:</strong> FFT (Fast Fourier Transform) is an algorithm that transforms waveforms in time domain to frequency domain, which can be used to analyze frequency component in waveforms. Linear and logarithmic displays are supported. Note: FFT can only display spectrograms, frequency measurement is not supported.<br> <strong>Reference Waveform:</strong> Support for latching re

• 【3In1 Design with IPS Display】: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple.
• 【Signal Generator】: Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. voltage amplitude is 2.5V, frequency is adjustable from 0-2Mhz, and squarewave duty cycle is adjustable from 1% to 99%.
• 【High-precise Multimeter】: Built-in true RMS multimeter, that supports quick software calibration. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, oscilloscope and multimeter functions can be used simultaneously (small window in upper right corner).
• 【Digital Oscilloscope Function】: Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal). Supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view.
• 【Sensitivity and Time Base】: oscilloscope will automatically detect signal and adjusts ranges. Support manual adjustment of waveform vertically and horizontally. vertical sensitivity indicates voltage in vertical direction, and it is adjusted by mV and V buttons to adapt to different voltages. time base represents time in horizontal direction. It is adjusted by S and NS buttons to accommodate different frequencies.  In stop mode, user can move waveform left and right.
